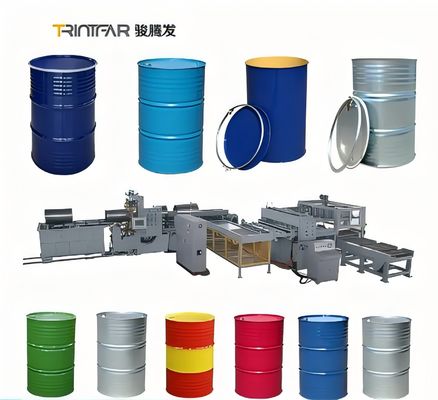

Steel Drum Oil Drum Chemical Drum Production Line

Steel Drum Oil Drum Chemical Drum Production Line
Steel Drum Oil Drum Chemical Drum Production Line
Steel Drum Oil Drum Chemical Drum Production Line Steel Drum Oil Drum Chemical Drum Production Line Steel Drum Oil Drum Chemical Drum Production Line Steel Drum Oil Drum Chemical Drum Production Line Steel Drum Oil Drum Chemical Drum Production Line Steel Drum Oil Drum Chemical Drum Production Line

큰 이미지 :  Steel Drum Oil Drum Chemical Drum Production Line

제품 상세 정보:
Place of Origin: China
브랜드 이름: Trintfar
인증: CE
결제 및 배송 조건:
Minimum Order Quantity: 1
가격: 10000~80000
Packaging Details: Wooden brackets/wooden cases
Delivery Time: 90~120
Payment Terms: L/C, D/A, D/P, T/T
접촉

Steel Drum Oil Drum Chemical Drum Production Line

설명
Application: Steel Drum Seam Welding Power(W): Adjustable
Welding Speed: 16m/Min Material Thickness Range: 0.8-1.5mm
Compressing Air Pressure: 0.6MPa Drum Length Range: 470-1100mm

Product Description


Steel Drum Oil Drum Chemical Drum Production Line 0
Product Description
Steel Drum Oil Drum Chemical Drum Production Line 1Steel Drum Oil Drum Chemical Drum Production Line 2Technical Solution.
1. 7 layers of circle rolling technology" (core tech of our company) has been adopted in Middle Equipment.

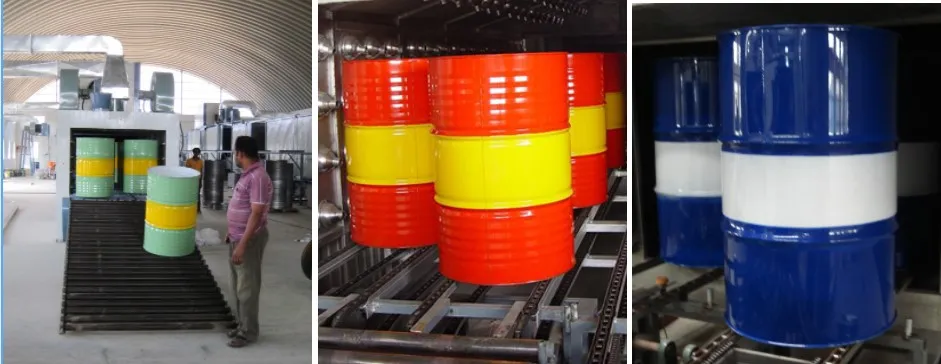

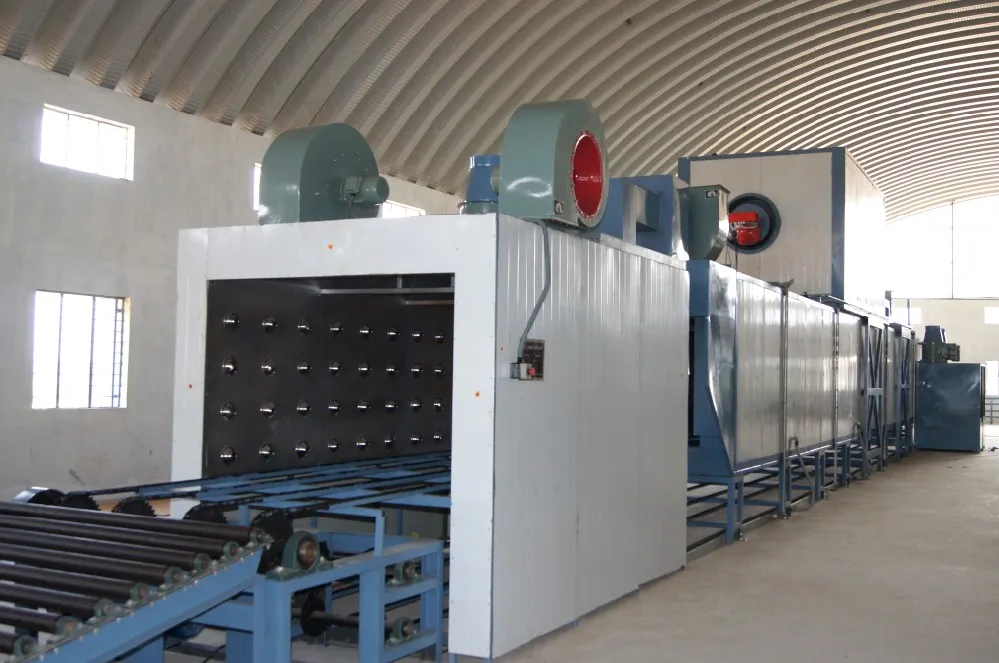

2. High-pressure painting without air, fuel heating has been adopted in Post Production Equipment.
Automatic production line, 11 workers are required only.
3. Complex Pressing technics have been adopted in Front Equipment, which saves 3~4% steel materials for each 55 Gallon steel drum.
Steel Drum Oil Drum Chemical Drum Production Line 3A. Cut the steel plate size: width 600-1320mm; thickness 0.6-1.4mm; B. Production capacity: cutting 15 time/minute; Max. Cutting speed 50-60m/minute; C. Total weight of the equipment: about 55 ton; D. Total power of the equipment: 48KW; E. Production level: cutting precision Length: tolerance 0.5mm; diagonal: tolerance 1mm
a. Coil cart: driven by 3 in 1 motor, hydraulic up and down;

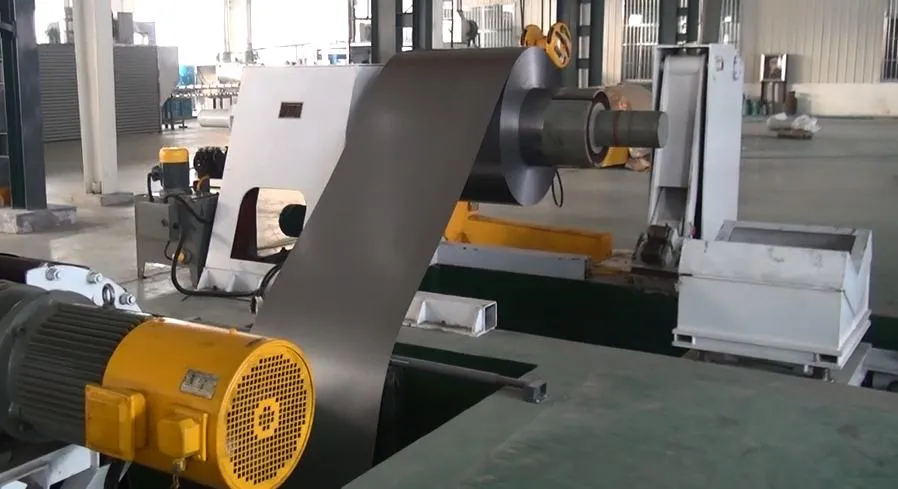

b. Uncoil unite: no power turning, hydraulic driving, coil inner diameter Ф508-Ф610mm; Maximum load-bearing 15 tons;
c. 7 roller leveler machine: 7 rollers leveling, motor speed adjustable by change frequency;
d. Measurement facility: the length and precision is controlled by A.C. service motor made in Japan;
e. Transporter: rollers conveyer.
f. Cover Pressing Machine (160Ton press) : to forming the cover and bottom by 2-160 Ton punch press, the raw material is coiling steel plate, loading and unloading is Auto operating. Unit power is 15KW.
g. Double Locking Pressing Machine: to locking the small cover by 63Ton punch press.

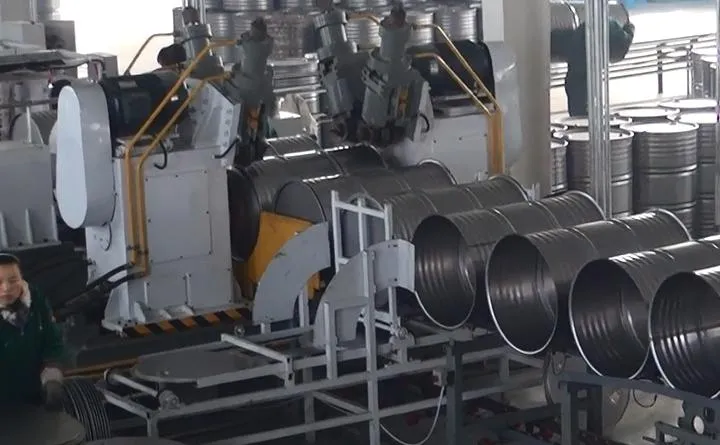

h. Pre curling & spray sealing glue machine: Before seaming, the drum top and bottom need pre-curl, at same time must spray glue to ensure the seaming quality.
i. Cutter: 3×2000mm ;PLC control. producing PET plastic containers and bottles in all shapes.
Steel Drum Oil Drum Chemical Drum Production Line 4Steel Drum Oil Drum Chemical Drum Production Line 5
Support various color LOGO customization fast production efficiency and automated support make production very simple
item value
Condition New
Machine Type Welding Manipulator
Applicable Industries Manufacturing Plant, Construction works , Energy & Mining, Other
After Warranty Service Video technical support, Online support, Spare parts, Field maintenance and repair service
Showroom Location Egypt, Turkey, United Kingdom, United States, France, Germany, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Morocco, Kenya, Argentina, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Australia
Core Components PLC, Engine, Bearing, Gearbox, Pressure vessel, Gear
Speed 2~10pcs/min
Steel Drum Oil Drum Chemical Drum Production Line 6Steel Drum Oil Drum Chemical Drum Production Line 7Steel Drum Oil Drum Chemical Drum Production Line 8Steel Drum Oil Drum Chemical Drum Production Line 9Steel Drum Oil Drum Chemical Drum Production Line 10Steel Drum Oil Drum Chemical Drum Production Line 11Q Are you a trading company or a factory?
A We are an integrated industry and trade, and have our own factory.

Q Where is your factory located?
A Our factory is located in Songjiang district, Shanghai of China. In addition, we also have factories in Dongguan and Ningbo.

Q Can you customize the machine?
A We support OEM/ODM service and can customize the machine according to your requirements.

Q What is the MOQ?
A According to the customer's requirements.

Q What are your services during the purchase process?
A Pre-sales: Visit the factory, Technical solutions and program design services, Proofing services, Sample testing services.
On-sales: Technical training, Installation and commissioning services.
After-sales: Free non-wearable parts, Repair service, Video technical support, Online remote guidance.


Q How long is your warranty period?
A We offer a one-year warranty.

Q What is the payment terms?
A We ship with full payment, and we can negotiate payment terms.

Q How long is the delivery time?
A Delivery time for standard machines: 7-15 working days
Delivery time for customized machines: According to the degree of customization, about 1-3 months

Q Can you provide samples?
A We provide sampling service, but you need to send us the sample by courier.
