기계 용량: 25S-40S/PC 정밀 용접: 일관된 결과를 위해 이중 용접 헤드
강력한 빌드: 내구성이 뛰어나고, 많은 생산 요구를 처리합니다 고급 자동화: 완전 자동, 노동과 시간을 줄입니다
다양 한 호환성: 금속 절단, 조각, 단조 및 연마기와 함께 작동합니다.

PRODUCT DESCRIPTIONS

Workflow

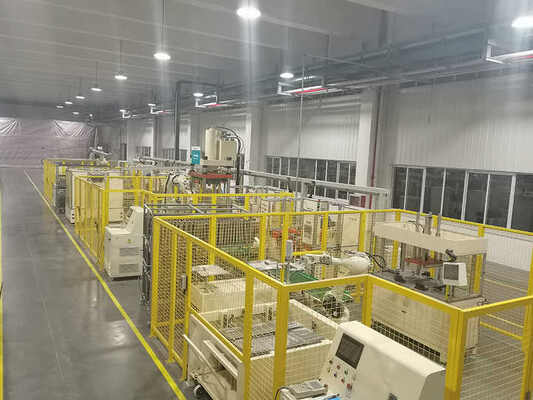

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 0

Work flow:U plate & Top plate → Front plate & U plate (longer side) → Front plate & U plate (shorter side) → Wave guide & magnetron support → Wave guide assembly & U plate → Back plate & U palte (longe side) → Back plate & U palte (shorter side) → Motor Support & U plate

Main equipments

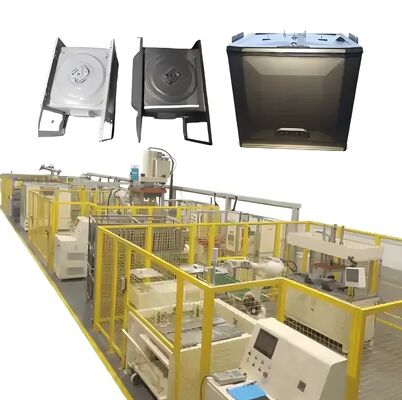

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 1

U plate and top plate welding

Equipment model: 2xDR-20000J-2C

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 2

U board and front board short side welding

Equipment model:2xDR-13000J-2C

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 3
Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 4
Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 5

U board and front board long side welding

Equipment model:DR-20000J-1C

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 6

Waveguide Box and Magnetron Welding

Equipment model:DR-30000J-1C

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 7
Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 8
Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 9

Waveguide Assembly and U Plate Welding

Equipment model:DR-30000J-1C

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 10

welding the long side of the back plate with the U plate

Equipment model:DR-20000J-1C

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 11
Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 12
Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 13

short side of the back plate and U plate welding

Equipment model:DR-13000J-1C

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 14

motor support welding

Equipment model: DR-13000J-1C

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 15
Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 16

Other informations



Product Details

Oven Production Line Layout Diagram

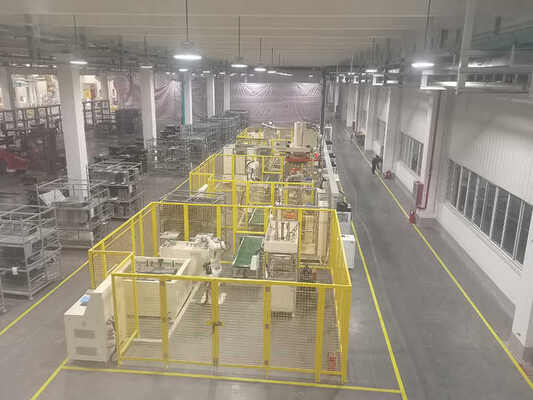

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 17

Production Results

Oven polishing forming welding production line, high-speed fully automatic production: Each product takes 25 to 40 seconds to complete the production process. 18



Basic Structure of DR-20000J Capacitor Energy Storage Spot Welding Machine

Components:
Frame, Pressurizing Mechanism, Water Cooling System, Welding Circuit, Capacitor Power Supply, Control System, Body, Welding Cylinder, Electrodes, Cooling Circuit, Monitoring Device, and Safety Mechanism.

  1. Frame:
    • C-frame structure, high-quality steel, and section steel.
    • Precision machining and heat treatment for rigidity and accuracy.
  2. Pressurizing Mechanism:
    • Vertical pressure type with self-lubricating bearings for better performance.
    • Minimizes electrode impact, preventing damage and wear.
  3. Pneumatic System:
    • Includes Japanese “SMC” solenoid valves, Taiwanese air processors, and oil-free cylinders.
    • Gas storage tank stabilizes pressure.
  4. Discharge Transformer & Welding Circuit:
    • Uses Wugang silicon steel sheets, and precision copper casting.
    • Soft copper tape and electrodes in series.
  5. Main Control System:
    • Mitsubishi PLC and HMI.
    • Manual, automatic, and charging modes.
    • Adjustable parameters via touch screen (voltage, pressure time).
  6. Welding Controller:
    • Fast charging/discharging via microprocessor.
    • Compatible with old and new capacitors, it extends capacitor life.
    • Protection modes for fault prevention.
    • Automatic adjustment for capacitor voltage and leakage current.
    • Fault detection for overcharge, discharge, and capacitor errors.
    • Stores up to 5 welding specs, count 9999 welds, real-time voltage detection (error ≤ 1%).

Equipment Configuration List

No Station Name Model Quantity Unit
1 Motor bracket welding DR-13000J-1C 1 Set
2 U board and top board welding 2xDR-20000J-2C 1 Set
3 U board and front board short-side welding 2xDR-13000J-2C 1 Set
4 U board and the long side of the front board are welded DR-20000J-1C 1 Set
5 Waveguide box and magnetron welding DR-30000J-1C 1 Set
6 Waveguide assembly and U-board welding DR-30000J-1C 1 Set
7 The long side of the back plate is welded to the U plate DR-20000J-1C 1 Set
8 The short side of the back plate is welded to the U plate DR-13000J-1C 1 Set

태그:
