기계 용량:

25S-40S/PC

정밀 용접:

일관된 결과를 위해 이중 용접 헤드

강력한 빌드:

내구성이 뛰어나고, 많은 생산 요구를 처리합니다

고급 자동화:

완전 자동, 노동과 시간을 줄입니다

다양 한 호환성:

금속 절단, 조각, 단조 및 연마기와 함께 작동합니다.

Basic Structure of DR-20000J Capacitor Energy Storage Spot Welding Machine

Components:
Frame, Pressurizing Mechanism, Water Cooling System, Welding Circuit, Capacitor Power Supply, Control System, Body, Welding Cylinder, Electrodes, Cooling Circuit, Monitoring Device, and Safety Mechanism.

Frame:
- C-frame structure, high-quality steel, and section steel.
- Precision machining and heat treatment for rigidity and accuracy.
Pressurizing Mechanism:
- Vertical pressure type with self-lubricating bearings for better performance.
- Minimizes electrode impact, preventing damage and wear.
Pneumatic System:
- Includes Japanese “SMC” solenoid valves, Taiwanese air processors, and oil-free cylinders.
- Gas storage tank stabilizes pressure.
Discharge Transformer & Welding Circuit:
- Uses Wugang silicon steel sheets, and precision copper casting.
- Soft copper tape and electrodes in series.
Main Control System:
- Mitsubishi PLC and HMI.
- Manual, automatic, and charging modes.
- Adjustable parameters via touch screen (voltage, pressure time).
Welding Controller:
- Fast charging/discharging via microprocessor.
- Compatible with old and new capacitors, it extends capacitor life.
- Protection modes for fault prevention.
- Automatic adjustment for capacitor voltage and leakage current.
- Fault detection for overcharge, discharge, and capacitor errors.
- Stores up to 5 welding specs, count 9999 welds, real-time voltage detection (error ≤ 1%).

No	Station Name	Model	Quantity	Unit
1	Motor bracket welding	DR-13000J-1C	1	Set
2	U board and top board welding	2xDR-20000J-2C	1	Set
3	U board and front board short-side welding	2xDR-13000J-2C	1	Set
4	U board and the long side of the front board are welded	DR-20000J-1C	1	Set
5	Waveguide box and magnetron welding	DR-30000J-1C	1	Set
6	Waveguide assembly and U-board welding	DR-30000J-1C	1	Set
7	The long side of the back plate is welded to the U plate	DR-20000J-1C	1	Set
8	The short side of the back plate is welded to the U plate	DR-13000J-1C	1	Set

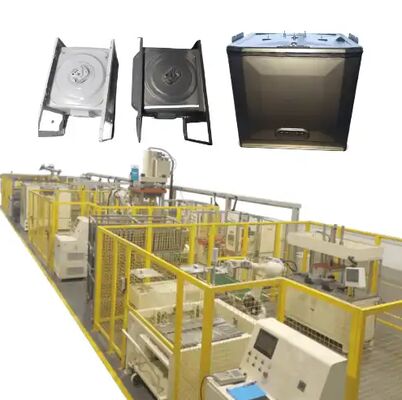

Polishing forming and welding production line for oven/microwave oven inner containers, high-speed and fully automatic production: The time required for each product to complete the production process

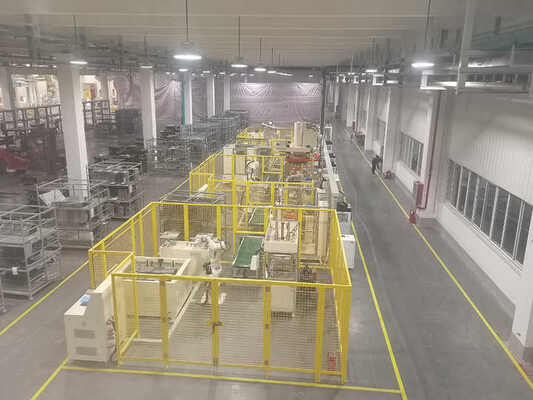

Polishing forming and welding production line for oven/microwave oven inner containers, high-speed and fully automatic production: The time required for each product to complete the production process

Polishing forming and welding production line for oven/microwave oven inner containers, high-speed and fully automatic production: The time required for each product to complete the production process

PRODUCT DESCRIPTIONS

Workflow

Main equipments

U plate and top plate welding

U board and front board short side welding

U board and front board long side welding

Waveguide Box and Magnetron Welding

Waveguide Assembly and U Plate Welding

welding the long side of the back plate with the U plate

short side of the back plate and U plate welding

motor support welding

Other informations

Product Details

Oven Production Line Layout Diagram

Production Results

Basic Structure of DR-20000J Capacitor Energy Storage Spot Welding Machine

Equipment Configuration List
